25m Outdoor Exhibition Tents Waterproof Strong Aluminum Airshow Enclosed

Liri Architecture Technology (Guangdong) Co., Ltd
Contact Now

25m Outdoor Exhibition Tents Waterproof Strong Aluminum Airshow Enclosed

Brand Name : Liri

Model Number : BTA

Certification : ISO9001:2008/SGS/BV/TUV/IFAI

Place of Origin : China

MOQ : 1 set

Price : USD40-300/sqm

Payment Terms : T/T, Western Union

Supply Ability : 1000000sqm

Delivery Time : shipped in 35 days upon receive payment

Packaging Details : 1) Aluminum Frame--membrane film 2)Hardware--solid carton box 3) Tent cover--PVC carry bag.

Color available : White, red, yellow, blue, green, black, gray, transparent, etc.

Life span : More than 15 years

Fabric : High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, UV resistant, tear resistant, self- cleaning ability , etc.

Application : Widely used for party, outdoor exhibition, outdoor wedding, trade fair, celebration, sports event, and workshop.

Frame : hard pressed extruded aluminum 6061 /T6(13HW)

Optional Fixing Methods : Ground anchor, expandable bolts,ect.

Contact Now

Liri Big Waterproof Strong Aluminum Airshow Enclosed Exhibition Tents

General Details

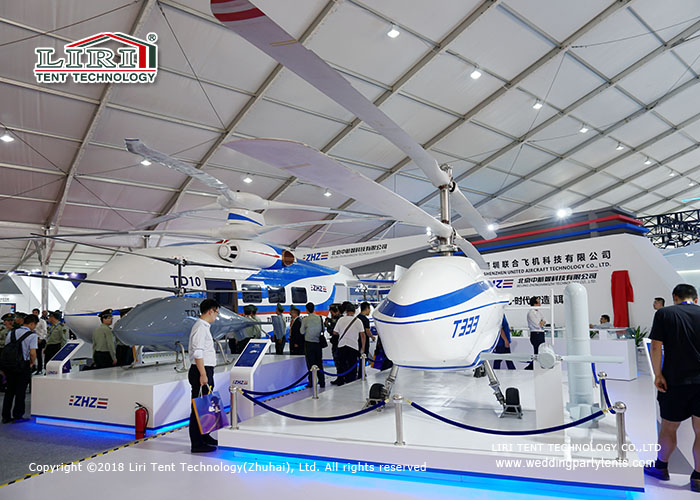

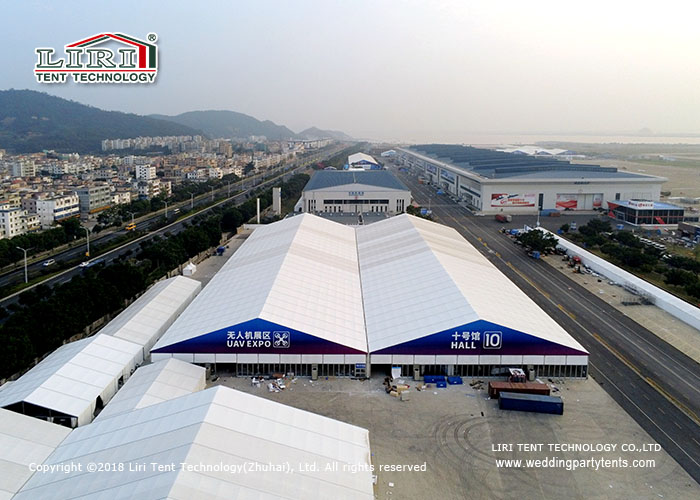

LIRI Architecture, as for the local enterprise in Zhuhai, has been cooperated with China International Aviation & Aerospace Exhibition for 20 years and made cooperation again this year. LIRI provided Zhuhai Airshow with numerous temporary exhibition halls, these halls are bright and spacious inside with multifunctional areas.

The Zhuhai Airshow, in addition to expanding the scale, let people deeply feel the strength of our motherland and the future of science and technology. Spy drone, Unmanned ship, Tianwen 1 Mars Probe, Change 5 Lunar Probe, BeiDou-3 Navigation Satellite System, showed in this exhibition, were all amazed us. All of them in this show are integrated into the four-word, “Chinese Power”.

Specification

For details, pls refer to below chart:

1). Main profile size for the BTA series: 204X110X4mm
2). Clear-span: 25m
3). Wind load: 100KM/h
4). Minimum tent length : In order to reach the designed wind load and make sure the tent is safe, pls set up the tent with the required minimum tent length.

Span width Eave height Ridge height Bay distance Main profile
10m 3.88m 5.53m 5m 204x110x4mm (4-channel)
12m 3.88m 5.83m 5m 204x110x4mm (4-channel)
15m 3.88m 6.3m 5m 204x110x4mm (4-channel)
20m 3.88m 7.1m 5m 204x110x4mm (4-channel)
21m 3.88m 7.25m 5m 204x110x4mm (4-channel)
25m 3.88m 7.88m 5m 204x110x4mm (4-channel)

Essential details

  • Place of Origin:Guangdong, China
  • Brand Name:LIRI TENT
  • Model Number:ET
  • Item Name:Airshow tent
  • Frame:hard pressed extruded aluminum alloy
  • Roof Cover:850g/sqm double PVC-coated polyester textile
  • Side Wall:PVC walls,glass wall,ABS wall,sandwich panel wall,etc.
  • Connectors:Hot-DIP Galvanized
  • Wind Resistance:100 km/h
  • Ground Situation:grassland,earth land,asphalt ground,cement ground,marble,etc.
  • Fixing Solution:ground anchor, expandable bolt, weight plate, etc.
  • Service Life:More than 15 years
