40m Large Sporting Event Tents With Hard Wall PVC Doors / Industrial Outdoor Warehouse Tents

Brand Name : LIRI TENT

Model Number : LH40m / 400

Certification : ISO9001:2008, SGS, TUV, CFM, IFAI, etc.

Place of Origin : CHINA( Mainland), Guangdong

MOQ : 1 set

Price : negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 100,000sqm/month

Delivery Time : within 20 days

Packaging Details : 1 . membrane film. 2. Carton . 3. PVC carry bag .

Function : Ourdoor Event

Side Walls : PVC sidewalls , glass , ABS , sandwich

Ground Situation : grass land, concrete ground, and more

Fixing Methods : Ground anchors , expandable bolts , weight plates

Accessories : AC, flooring system, ABS walls, glass door

Roof Fixing : Tensioning Bar

Color Option : white , greeen , black, transparent and so on

Contact Now

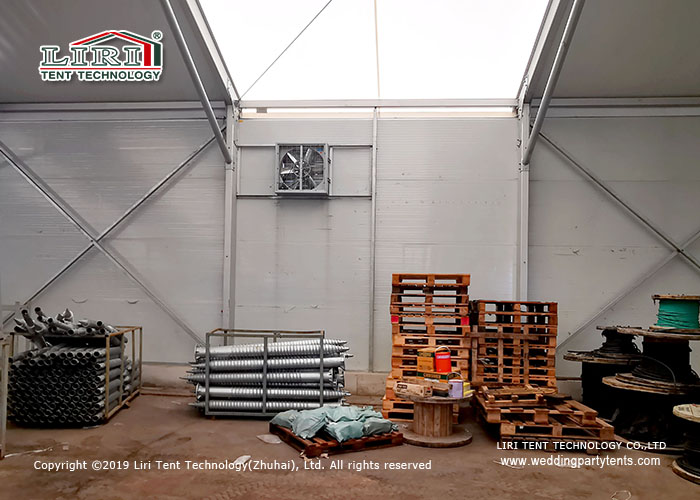

40m Width Aluminium Industry Warehouse Tents with Hard Wall


Applications:

The width and length of tent can be adjusted by 5m to fit change in number. The standard tent sidewall is made of PVC material, which is our most economical type. It can be adopted Sandwich hard walls. The price of it is higher than PVC material sidewall, and it looks more elegant and solid, which can enhance the impression of your storage tent. Furthermore, the Sandwich solid wall is strong that can keep the tent inside area safe. If you have some high-level requirement, the Sandwich solid wall is a good choice.

Type Span Width Bay Distance Eave Height Ridge Height Main Profile
BT 15m/49.2' 5m/16.4' 3.88m 6.30m 204x120x4mm(4-channel)
BT 20m/65.6' 5m/16.4' 3.88m 7.10m 204x120x4mm(4-channel)
BT 25m/82' 5m/16.4' 3.88m 7.80m 204x120x4mm(4-channel)
EBT 20m/65.6' 5m/16.4' 3.92m 7.20m 256x121x5mm(4-channel)
EBT 25m/82' 5m/16.4' 3.92m 8.0m 256x121x5mm(4-channel)
EBT 30m/98.4' 5m/16.4' 3.92m 8.9m 256x121x5mm(4-channel)
The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size or shape is available.

Description:

Easy to be assembled and dismantled, movable.

No pole inside, 100% available interior space.

40m Large Sporting Event Tents With Hard Wall PVC Doors / Industrial Outdoor Warehouse Tents

Structure


Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
Wind Loading: max. 100km/h (can be reinforced)
Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.

Life Span:

For the structure of the tent, it is strong enough for permanent or semi - permanent. The frame is using the 6064/ T6 aluminum frame, and it can use for about 20-25 years. If for the pvc roof cover, it can use for about 8 - 10 years.

Tent Fixing Methods
  • If it is concrete ground , pls use the expandable bolts
  • If it is termac grond or grass ground or sand ground or other soft gronds , pls use the steel anchors .
  • If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system
  • If you will make the concrete bases to fix the tent , pls use the embeded bolts M 24 x 500 mm
  • 40m Large Sporting Event Tents With Hard Wall PVC Doors / Industrial Outdoor Warehouse Tents

Optional Accessories

  • Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
  • Wooden Flooring System: VIP cassette flooring, simple cassette flooring
  • Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
  • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
  • Fixing Methods: ground anchors, weight plate, expandable bolts
  • Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
  • Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
  • Adjustable flooring system, can fix on the uneven land

Packaging:

  • aluminum frame packed in membrane film
  • hardware packed in solid carton box
  • roof and sidewall in professional PVC carry bag
