10m width Aluminum Clear Tent Transparent Sport Marquees for Reception
Different size and style tents providing as solution of an office for registration, outdoor events, party, wedding, exhibition, parking, auto show warehouse, storage festival, outside camping, sports events, temporary warehouses/workshops, celebrations and military affairs VIP reception center, business center, security inspection area, walkway, welcome station, shuttle station and so on.
Applications:
Widely used for parties, weddings, events, celebrations, sports, trade shows, warehouse, Hajj, conferences, cafe shops, restaurants, corporate events, etc.
Optional Accessories of wedding tent hall
Covers: colorful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Specifications
| Type | Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| NPT | 3m | 3m | 2.6m | 3.16m | 100x48x3mm(4-channel) |
| NPT | 5m | 3m | 2.6m | 3.52m | 100x48x3mm(4-channel) |
| NPT | 10m | 3m | 2.6m | 4.40m | 100x48x3mm(4-channel) |
| NHT | 12m | 3m | 3m | 5.13m | 122x68x3mm(4-channel) |
| NHT | 15m | 3m | 3m | 5.67m | 122x68x3mm(4-channel) |
| ET | 16m | 5m | 3.3m | 5.72m | 152x119x3.5mm(4-channel) |
| ET | 18m | 5m | 3.3m | 6.01m | 152x119x3.5mm(4-channel) |
| The length can be extended by 3m/5m bay such as 15m,20m,30m,40m...Customized size is available. | |
Liri Tent Series
Tent Roof Type | Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m | 5m
|
Material
Frame struss: Hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.
Fabric cover: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc. <o: P>
Connecter: Strong hot-DIP galvanized steel, zinc thickness over 80um
Features & Specification
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: Max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can't stay if use big degree roof design)
Easy to be assembled and dismantled, removable
No pole inside, 100% room is available
Sizes can be customized(like side/leg height)

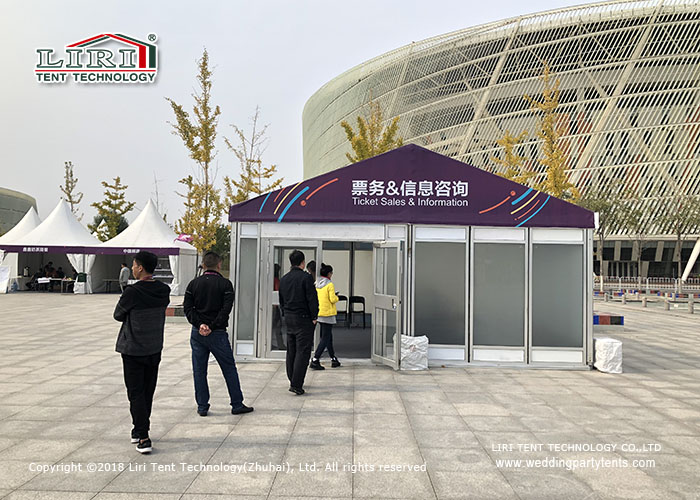

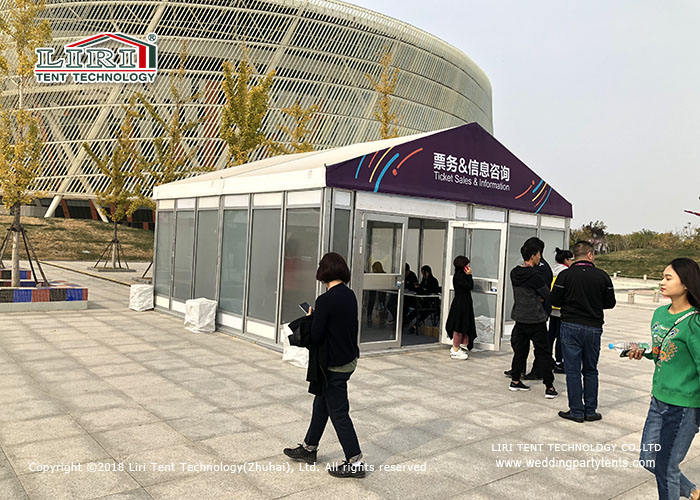

Picture for reference
