Big 800 People A Frame Tent / 10x20 Party Tent Windproof SGS Approve

Liri Architecture Technology (Guangdong) Co., Ltd
Contact Now

Big 800 People A Frame Tent / 10x20 Party Tent Windproof SGS Approve

  • 1
  • 2

Brand Name : LIRI TENT

Model Number : DDS 20m / 660

Certification : ISO9001:2008, SGS, TUV, CFM, IFAI, etc.

Place of Origin : CHINA( Mainland), Guangdong

MOQ : 1 set

Price : negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 100,000sqm/month

Delivery Time : within 20 days

Packaging Details : 1 . membrane film. 2. Carton . 3. PVC carry bag .

Tent Length : Unlimited and 5m Bay Distance

Frame Material : High Reinforced Aluminum 6061 / T6

Life Span : 15 - 20 years

Color : White , Red , Black , Blue , Transparent , and more

Side Walls : PVC sidewalls , glass walls, ABS walls , sandwich walls

Certificates : ISO 9001:2008, SGS, Cfm, Engineer Calculation, Nfp

Contact Now

Big 800 People A Frame Tent / 10x20 Party Tent Windproof SGS Approve


Applications:

Widely used for golfing, tennis, horse racing, motor sport or any other type of events, our innovative and user- friendly Two StoryTent systems are a sure winner every time.

Type Span Width Bay Distance Eave Height Ridge Height First Floor Height Main Profile
DDS 10m/32.8' 5m/16.4' 6.75m 8.5m 3.21m 300x120x5mm
DDS 15m/49.2' 5m/16.4' 6.75m 9.34m 3.21m 300x120x5mm
DDS 20m/65.6' 5m/16.4' 6.75m 10.17m 3.21m 300x120x5mm
DDS 25m/82' 5m/16.4' 6.75m 11m 3.21m 300x120x5mm
DDS 30m/98.4' 5m/16.4' 6.75m 11.75m 3.21m 300x120x5mm
DDS 40m/131.2' 5m/16.4' 6.75m 13.5m 3.21m 300x120x5mm
ADDS 15m/49.2' 5m/16.4' 6.75m 8.6m 3.21m 300x120x5mm
ADDS 20m/65.6' 5m/16.4' 6.75m 9.43m 3.21m 300x120x5mm
The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available.

Fxing Methods

If you will make the concrete bases to fix the tent , pls use the embede bolts M 24 x 500 mmBig 800 People A Frame Tent / 10x20 Party Tent Windproof SGS ApproveBig 800 People A Frame Tent / 10x20 Party Tent Windproof SGS Approve

If it is concrete ground , pls use the expandable bolts .
If it is termac ground or grass ground or sand ground or other soft grounds , pls use the steel anchors .
If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system ;


Optional Accessories

1. Covers: colourful cover, transparent cover, inflatable roof cover
2. Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
3. Wooden Flooring System: VIP cassette flooring, simple cassette flooring
4. Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling
5. shutter(automatic or manual)
6. Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
7. Fixing Methods: ground anchors, weight plate, expandable bolts
8. Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
9. Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.


Description:

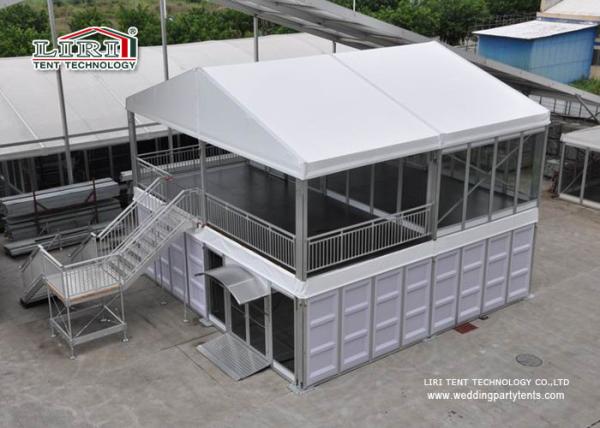

Double Decker tent is made of two story structure tent, it is durable in design and has better ability in wind resist and snow loading capacity.

The wind speed resistance is up to 100km/h(Wind load is 0.5 kn/m2) . the material of the aluminum frame adopt Reinforced aluminum alloy 6061/T6 extruded profile, surface anodized finish, and Roof Covers and side walls are 850g/m2 PVC-coated polyester textile flame retardant to DIN4102 B1,M2.

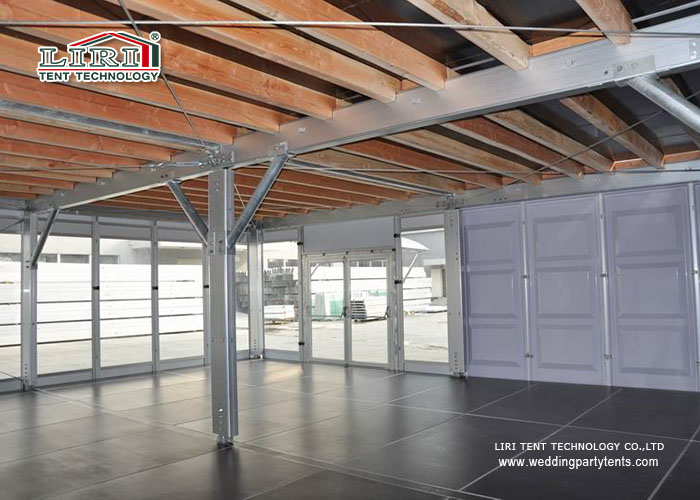

Besides, the flooring structural supports adopt our high quality wooden beams and the second floor system adopt 28mm thick waterproof splint. The Double Decker Tent is also made from a modular system like traditional clear span structure.

The length can be extended by 5m bay section without a limit and it is the same as the normal structures. Time needed for installation is very short and it can be installed and dismantled repeatedly . And easy to shipping is another advantage of the Double Decker Structure.


Double Decker Tent

Big 800 People A Frame Tent / 10x20 Party Tent Windproof SGS Approve


Certificates:

  • National High-tech Enterprises
  • ISO 9001:2008 Quality Control Standards
  • IFAI Certificate of Membership
  • American Rental Association Associate Membership
  • Practical Type Patent Certificate
  • Liri Tents Trade Mark Certificate

LIRI TENT Successful Cases:

  • Kinds of New Style Tent for China Open
  • Canton Fair Exhibition Hall
  • 2011 Universiade Official Tent Supplier
