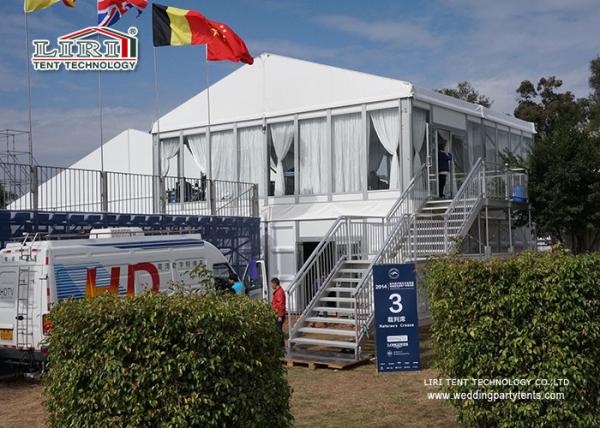

Wedding Party 2 Story Tent , 20 X 40 Party Tent Water Resistance
Applications:
Double Decker Tent is also called Two Story Tent. Double Decker Tent structure provides the best space saving solution by creating additional floor coverage where space is at a premium and space limited. Two Story Tent also can create a better viewing space for special event.
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | First Floor Height | Main Profile |
| DDS | 10m/32.8' | 5m/16.4' | 6.75m | 8.5m | 3.21m | 300x120x5mm |
| DDS | 15m/49.2' | 5m/16.4' | 6.75m | 9.34m | 3.21m | 300x120x5mm |
| DDS | 20m/65.6' | 5m/16.4' | 6.75m | 10.17m | 3.21m | 300x120x5mm |
| DDS | 25m/82' | 5m/16.4' | 6.75m | 11m | 3.21m | 300x120x5mm |
| DDS | 30m/98.4' | 5m/16.4' | 6.75m | 11.75m | 3.21m | 300x120x5mm |
| DDS | 40m/131.2' | 5m/16.4' | 6.75m | 13.5m | 3.21m | 300x120x5mm |
| ADDS | 15m/49.2' | 5m/16.4' | 6.75m | 8.6m | 3.21m | 300x120x5mm |
| ADDS | 20m/65.6' | 5m/16.4' | 6.75m | 9.43m | 3.21m | 300x120x5mm |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available. |
Fxing Methods
- If you will make the concrete bases to fix the tent , pls use the embede bolts M 24 x 500 mm
)RSXOHU0V(M.png)
- If it is concrete ground , pls use the expandable bolts .
- If it is termac ground or grass ground or sand ground or other soft grounds , pls use the steel anchors .
- If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system ;
Optional Accessories
1. Covers: colourful cover, transparent cover, inflatable roof cover
2. Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
3. Wooden Flooring System: VIP cassette flooring, simple cassette flooring
4. Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling
5. shutter(automatic or manual)
6. Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
7. Fixing Methods: ground anchors, weight plate, expandable bolts
8. Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
9. Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Description:
The clear span we have for the Thermo Roof Cube Double Decker structure series is 10m 15m 20m 25m 30m 40m, and the main profile size is 300x120x5mm. Below are the characteristics of our thermo roof cube double Decker structure:
The roof looks flat which the roof pitch is 7 degree, this makes it looks like a permanent concrete building. On the other hand, there is parapet on the eave of the tent, after improvement and innovation; we increased the space for the banner advertising, which provided our customer with the platform to print Ads on the tents.

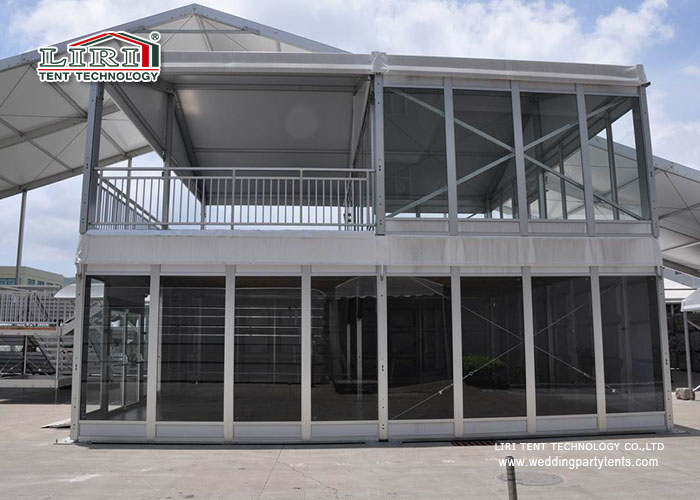

Double Decker Tent
Certificates:
National High-tech Enterprises
ISO 9001:2008 Quality Control Standards
IFAI Certificate of Membership
American Rental Association Associate Membership
Practical Type Patent Certificate
Liri Tents Trade Mark Certificate
